Description
Technical Parameters
| Net weight | Remote control distance | Battery parameters | Roller brush speed | Cleaning efficiency | Full charge runtime |
| 35kg | 100m | 25.6AH | 300 r/min | 1800㎡/h | 3-4h |
| Product size | Roller brush length | Battery type | Water output | Daily cleaning volume | Array tilt angle |
| 840*1341*300mm | 1200/1300mm | Ternary lithium battery | 10-15L/min (customer selectable) | approx. 1.5MW | 0-20° |
Key Features
• High panel cleanliness and excellent cleaning consistency
• High cleaning efficiency with water-assisted washing
• Lightweight design, safe and non-damaging to PV modules
• Modular structure for fast disassembly and easy handling
• Flexible operation with smooth movement and strong adaptability
Applications

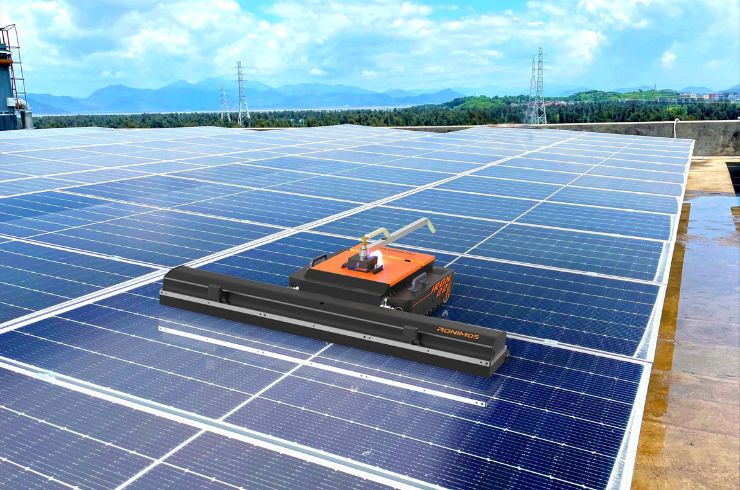

Ideal for commercial and industrial distributed photovoltaic systems, including factory rooftops, logistics parks, and commercial buildings.
Especially suitable for PV projects that require water-based cleaning, high efficiency, and minimal impact on panel structures.
Why Choose RDN22
• High Cleaning Efficiency
One single machine can clean up to 1.5 MW of PV panels per day, significantly reducing labor and operating costs.
• 100% Panel Cleanliness
Delivers outstanding cleaning performance, achieving near 100% surface cleanliness for maximum power generation efficiency.
• Lightweight & Panel-safe Design
Ultra-light structure ensures zero damage to PV modules, making it ideal for rooftop and BIPV applications.
• Modular & Quick-release Structure
Fast disassembly and installation enable easy transportation and rapid deployment across different sites.
• Reliable Water-based Cleaning Solution
Optimized for water-assisted cleaning, providing stable and consistent results even in heavily soiled environments.
